Precision Filling for High-Viscosity Paints, Resins & Adhesives

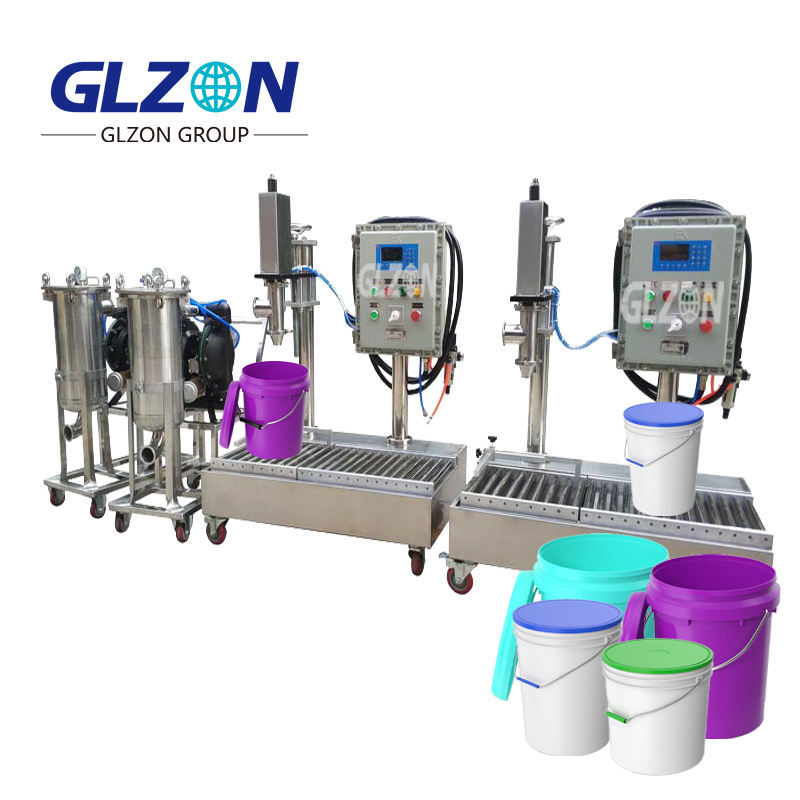

Shanghai Guangzhi Automation’s GZ-SPF700 delivers ±0.3% weight accuracy for filling 15–25L pails with viscous, solvent-based, or reactive materials. Engineered for paint manufacturers, composite producers, and adhesive suppliers, this ATEX/CE-certified system combines operator-assisted loading with gravimetric control—reducing spillage by 98%, cutting labor costs by 75%, and ensuring batch consistency even with challenging fluids (≤200,000 cP).
Intelligent Viscosity Compensation
Load-Cell Guided Servo Pump: Auto-adjusts flow rates for materials from thin solvents (0.8 cP) to thick epoxy resins (200,000 cP) (±0.3% accuracy).
Anti-Static Nozzles: Conductive PTFE tips dissipate charges during solvent filling (ATEX Option).
Operator-Safe & Ergonomic
Height-Adjustable Fill Head: 600–1100mm vertical range accommodates palletized pails.
Hands-Free Trigger: Foot pedal control + emergency stop (<0.5s response).
Corrosion-Resistant Architecture
316L SS/PTFE Fluid Path: Withstands acids/alkalis in paints/adhesives (pH 0–14).
Quick-Seal Couplings: Tool-free nozzle changes for pail necks (?50–100mm) in <45 seconds.
Zero-Waste Technology
Drip-Free Shutoff: Vacuum suck-back eliminates post-fill drips (loss <0.15%).
Overfill Prevention: Auto-stop if weight deviation exceeds ±1%.
| Parameter | Specification |
|---|---|
| Model | GZ-SPF700-Pro |
| Pail Capacity | 15–25 L (customizable 10–30L) |
| Accuracy | ±0.3% (gravimetric) |
| Viscosity Range | 0.8–200,000 cP |
| Filling Pressure | 0–20 bar (adjustable) |
| Throughput | 12–18 pails/hour (operator-dependent) |
| Power | 380V/50Hz, 3.0 kW |
| Air Consumption | 0.6 MPa, 0.2 m3/min |
| Material Contact | 316L SS, PTFE, EPDM |
| Footprint (L×W×H) | 1800 × 1000 × 2200 mm |
| Weight | 450 kg |
| Metric | GZ-SPF700 Semi-Auto | Manual Filling |
|---|---|---|
| Output (8h shift) | 144 pails | 40 pails |
| Labor | 1 operator | 3 operators |
| Material Waste | <0.15% | 3–10% |
| Spill Incidents | 0 | 4–8 daily |
| ROI Period | 5–8 months | N/A |
Paints/Solvents: Nitrogen inertization option (<10 ppm O?) for oxidation-sensitive coatings.
Epoxy Resins: Heated hopper (40–80°C) maintains viscosity; dual-component version available.
Polyurethane Adhesives: Moisture-proof purge system prevents curing in nozzles.
