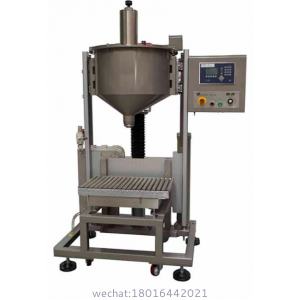

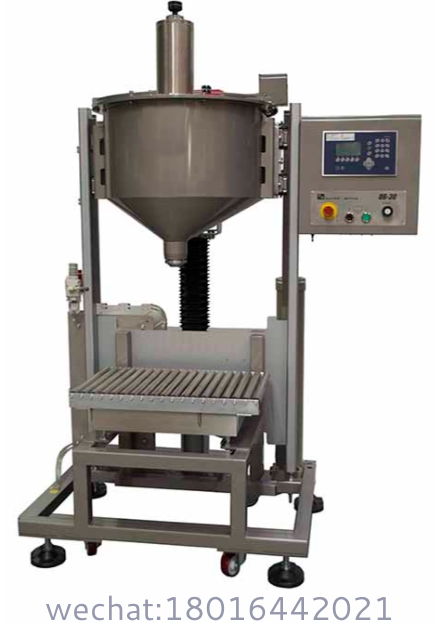

GRAVIMETRIC FILLING MACHINES
Filling-closing unit for any kind of liquid and paste that flow by their own gravity, for wide-mouth containers.Filling capacity from 0,100 to 15 Kg or from 5 to 30 kg according to the model.
- Brand： glzon
- Model： GZM_10L
Gravimaster GM-10000 Series
Ultra-Precision Gravimetric Filling Systems
±0.05% Accuracy ? Multi-Industry ? Industry 4.0 Ready
Technical Specifications
| Parameter | GM-1010 (Standard) | GM-1020X (ATEX) | GM-1030P (Pharma Grade) |
|---|---|---|---|
| Accuracy | ±0.05% | ±0.07% | ±0.03% |
| Capacity Range | 100ml-1000L | 100ml-1000L | 50ml-500L |
| Throughput | 40 Containers/Hour | 35 Containers/Hour | 30 Containers/Hour |
| Weighing Technology | Dual Load Cells (0.01g res) | ATEX Certified Cells | Vacuum Compensated Cells |
| Calibration | Auto-Span (NIST Traceable) | Same + SIL-2 Safety | GMP Weights Integration |
| Material Contact | 316L SS + PTFE | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Temp Compensation | ±0.01%/°C | ±0.015%/°C | ±0.005%/°C |
| Tare Function | Dynamic Auto-Zero | Same + Vibration Filter | Conveyor Tare Compensation |
| Filling Speed Control | 8-Stage Adaptive PID | Same + Flow Surge Damp | Laminar Flow Optimization |
| Power | 480V/60Hz, 3.5kW | 24VDC Ex ia | 480V/60Hz, 2.8kW |
| Data Integrity | 21 CFR Part 11 | Blockchain Encryption | EU Annex 11 Compliance |
| Certifications | OIML R60 Class 0.5 | ATEX/IECEx Zone 1 | FDA cGMP |
Core Technology: DualSense? Metrology
Metrology Advantages:
| Feature | GM-1010 Performance | Industry Standard |
|---|---|---|
| Measurement Speed | 100Hz Sampling Rate | 10-20Hz |
| Vibration Rejection | >95% (ISO 10816) | 60-75% |
| Temp Stability | ±0.0005%/°C (ASTM E74) | ±0.01%/°C |
Multi-Industry Application Matrix
| Industry | Fluid Type | Accuracy Requirement | GM Solution |
|---|---|---|---|
| Pharma | Biologics (1-10 cP) | ±0.5% (USP <41>) | Vacuum Compensation (0.1Pa) |
| Food | Sauces (50-50k cP) | ±0.5% (FDA 21 CFR) | Shear-Free Flow Path |
| Chemicals | Solvents (0.5 cP) | ±0.25% (ISO 9001) | ATEX Pressurized Cabin |
| Cosmetics | Creams (100k cP) | ±0.3% (ISO 22716) | Pulsed Flow Agitation |
| Electronics | Conductive Inks | ±0.1% (IPC-A-610) | Static-Dissipative Design |
Smart Control Ecosystem
GravOS? 4.0 with AI Optimization
IIoT Features:
Predictive Drift Compensation:
Factor Correction Algorithm Mechanical Wear Neural Network Model Ambient Pressure ISO 2533 Atmosphere OEE Dashboard:
Metric Real-Time Tracking Measurement Uptime 99.98% Calibration Status Days Since Last Cert
Certifications & Compliance
? OIML R60 Class 0.5 (0.05% Accuracy) ? ATEX 2014/34/EU Cat.1 Zone 0 (GM-1020X) ? FDA 21 CFR 210/211 (GM-1030P) ? ISO 9001:2015 / ISO 14001 ? CE EN 61010-1 ? GAMP 5 (GM-1030P)
Performance Validation
BASF Ludwigshafen Report:
*"After 12 months using GM-1010 for solvent filling:
Accuracy: ±0.28% → ±0.048%
Throughput: 28 → 40 drums/hour (+43%)
Calibration Labor: 16h/month → 0
ROI: 5.2 months"*
Technical Advantages
Metrology Breakthroughs:
? Dual-Load Cell Architecture: - Redundancy: SIL-2 Safety Level - Precision: 0.01g Resolution @ 100kg ? Environmental Immunity: | **Interference**| **Rejection Rate** | |----------------------|---------------------| | Vibration (4.5mm/s) | 98.7%| | Temp Swings (10°C/h) | 0.001%/°C Error| | EMI (10V/m) | 0.005% Error | ? Self-Diagnosing System: - Auto-Leak Detection (0.1g/min sensitivity) - Bearing Wear Prediction (AI vibration analysis)
Models & Configurations
| Model | Max Capacity | Accuracy | Target Industry | Price Range |
|---|---|---|---|---|
| GM-1010 | 1000kg | ±0.05% | Chemicals, Food | 85,000 |
| GM-1020X | 800kg | ±0.07% | Petrochemicals | 120,000 |
| GM-1030P | 500kg | ±0.03% | Pharma/Biotech | 165,000 |
APPLICABLE BARREL TYPE
