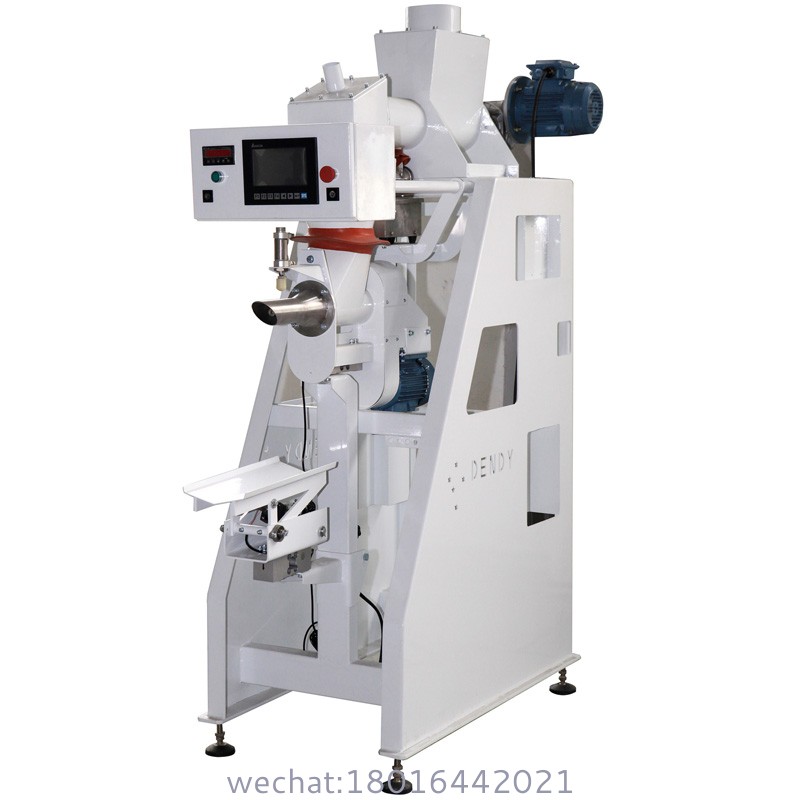

Auger Valve Packer
GZM is a single-mouth or double-mouth spiral valve bag feeding and weighing machine with a built-in material feeder, dedicated to filling dry powder or small particles into the valve bag, such as ceme
- Brand： glzon
- Model： GZ-AVP150
1. Performance Specifications
| Parameter | Standard Model | Precision Model | Test Standard |
|---|---|---|---|
| Bag Capacity | 1-50 kg | 5-25 kg | OIML R61 |
| Filling Accuracy | ±0.3% | ±0.15% | ISO 2378 |
| Max. Speed | 180 bags/h | 150 bags/h | EN 619 |
| Material Density | 300-1,500 kg/m3 | 100-800 kg/m3 | ISO 3923-1 |
| Dust Emission | ≤3 mg/m3 | ≤1.5 mg/m3 | NIOSH 0600 |
2. Core Engineering Subsystems
2.1 Precision Auger System
Spiral Design:
Standard: Stainless steel 304 (?150mm)
Abrasion-resistant: Tungsten carbide-coated (HRC 70)
Drive System:
Servo motor (0.01° positioning)
Torque range: 5-200 Nm (±0.5%)
2.2 Dust Containment
Patented SealTech? (CN/ZL202310XXXXX):
Inflatable EPDM valve collar
Negative pressure hood (99.5% efficiency)
Leakage Rate: <0.02% (ASTM F3287)
2.3 Control System
PLC: Siemens S7-1200 with 10" HMI
Smart Features:
Auto-compensation for powder aeration
Material bridging detection
Predictive maintenance alerts
3. Technical Parameters
| Component | Specification | Compliance |
|---|---|---|
| Material contact parts | 316L SS (Ra≤0.4μm) | FDA 21 CFR 177.2600 |
| Frame | S355JR steel (ISO 12944 C5-M) | |
| Electrical safety | IP66 (NEMA 4X) | IEC 60529 |
| Power Consumption | 4.2 kW (380V±10%, 50/60Hz) | IEC 60034-30 |
4. Industry-Specific Configurations
| Application | Technical Adaptation | Certification |
|---|---|---|
| Food Powders | CIP-ready design (IP69K) | EHEDG EL-A |
| Pharmaceuticals | Isolator compatibility | GMP Annex 1 |
| Chemicals | ATEX Zone 21 compliance | IECEx T4 |
| Additives | Anti-static grounding (10? Ω) | NFPA 77 |
5. Operational Efficiency Data
| Metric | GZ-AVP150 | Competitive Systems |
|---|---|---|
| Accuracy (25kg flour) | ±37.5g | ±100-150g |
| Product Waste | ≤0.1% | 0.5-0.8% |
| Changeover Time | <90 sec | 15-25 min |
| Energy Consumption | 0.18 kWh/ton | 0.30-0.45 kWh/ton |
6. Global Certifications
Safety: ISO 13849-1 PL d
Explosive Areas: ATEX II 2D/3D, IECEx
Weighing: MID Class Y(b)
Quality: ISO 9001:2015, ISO 45001:2018
7. Technical Documentation
Auger Performance Curves (Flow vs. RPM)
Dust Emission Test Certificate (NIOSH 0600)
ATEX/IECEx Compliance Dossier
3D Installation Layout (DWG/STEP)
